Slab Rebar Drawings

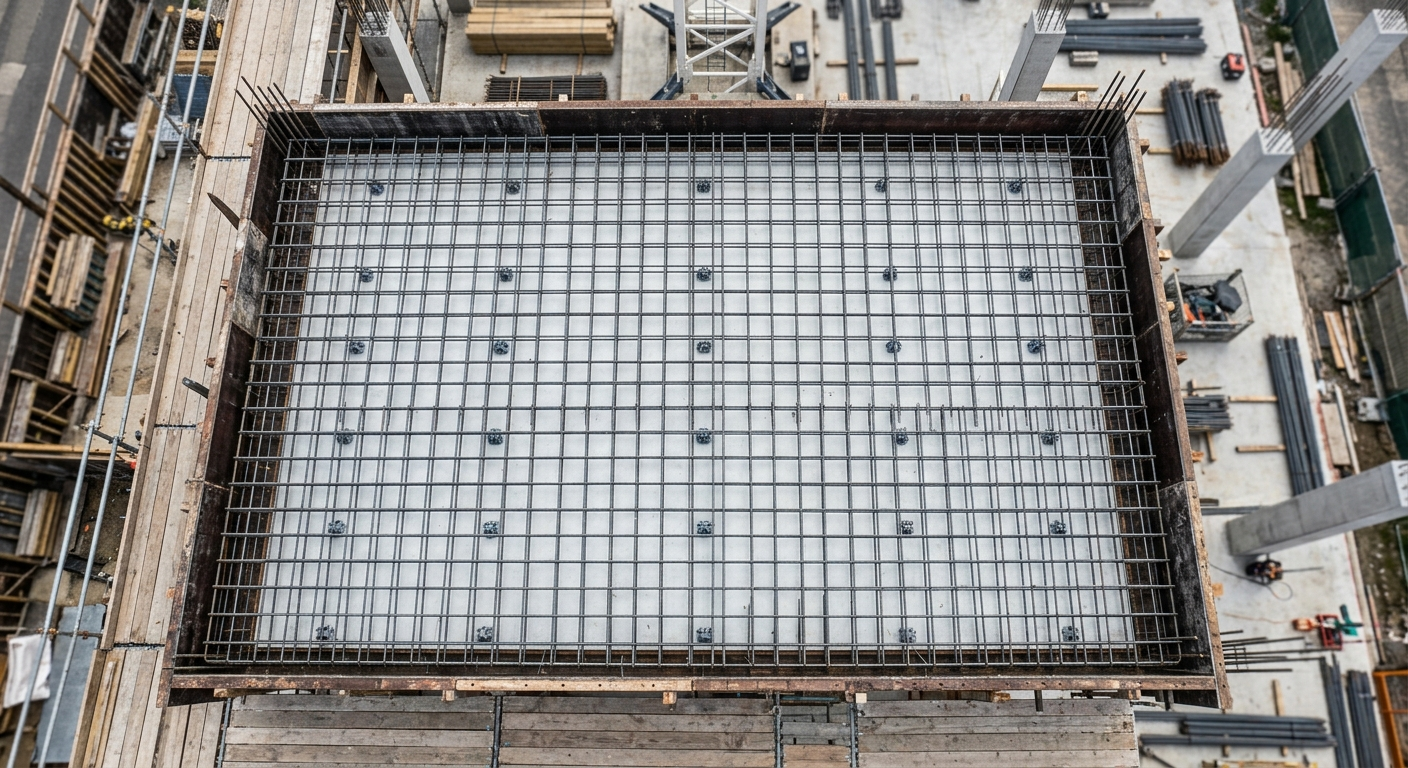

Slab rebar shop drawings define the complete reinforcement layout, including main reinforcement, distribution steel, top negative steel over supports, and additional reinforcement at openings and high-stress zones. Steel placement is shown with precise bar spacing, bar sizes, lap locations, and concrete cover requirements to ensure structural performance and durability. Each bar is assigned a unique bar mark linked to the bar bending schedule for accurate fabrication, identification, and traceability. Slabs are identified using a consistent naming and nomenclature system (e.g., S1, S2, S3, flat slabs, one-way or two-way slab tags) aligned with structural grid references. The detailing ensures constructability, proper load distribution, crack control, and efficient on-site installation with minimal ambiguity.
